Place of Origin: | China |
نام تجاری: | BK |
گواهی: | ISO9001/ISO14001 |
Model Number: | D80-1.7 |
Minimum Order Quantity: | 1 set |
---|---|
قیمت: | Negotiation |
Packaging Details: | Export standard wooden case |
Delivery Time: | 20-40 working days, depends on order amount and specification |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 SETS per month |
ظرفیت هوا: | 80m3 / min | فشار دیفرانسیل را تخلیه کنید: | 70KPA |
---|---|---|---|
قدرت موتور: | 132 کیلووات | تخلیه متولد شد: | DN300 (12 اینچ) |
نوع خنک کننده: | اب | نوع رانده شده: | جفت |
کاربرد: | تصفیه فاضلاب ، کوره ذوب ، کارخانه آماده سازی ذغال سنگ ، شناور معدن ، گاز شیمیایی ، صنعت خلاء و سایر | ||
برجسته: | multi stage centrifugal blowers,high pressure centrifugal blower,high pressure centrifugal blower |

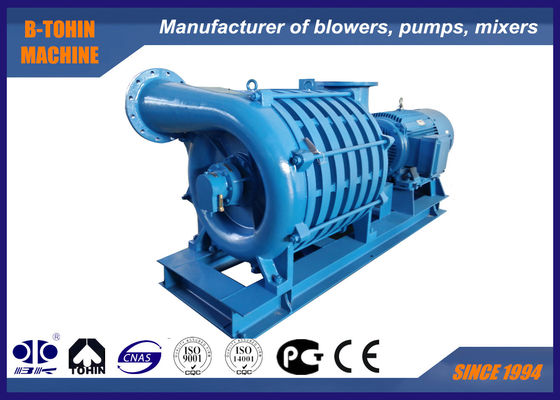

Low Noise Multistage Centrifugal Blower, wastewater treatment air blower
About D series mult-stage centrifugal blower
Specifications
Model No. |
D80-1.7 |
Discharge differential pressure |
70KPA |
Air capacity |
80m3/min |
Motor power |
132KW |
Shaft power |
110KW |
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
1. Vibration on bearings < 2.5mm/s for all fans and blowers
2. Long service life
3. Low noise: High efficiency type noise, sound proofed with obstacle exists, so there's nearly no noise outside the blower room.
4. Low running cost: energy consumption than other type blowers.
5. High efficiency
6. Heavy duty and sturdy construction
7. Oil free
8. Air capacity adjustable by inlet butterfly valve

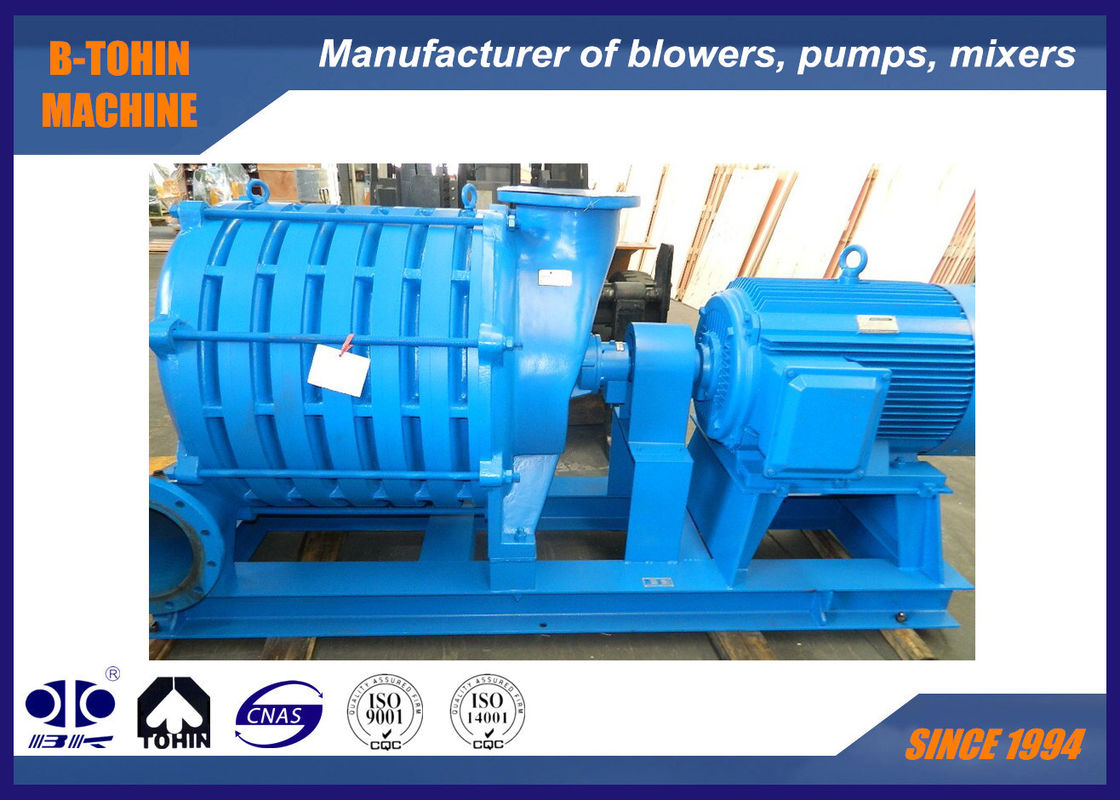

Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
